Install and charge the battery

Install the battery

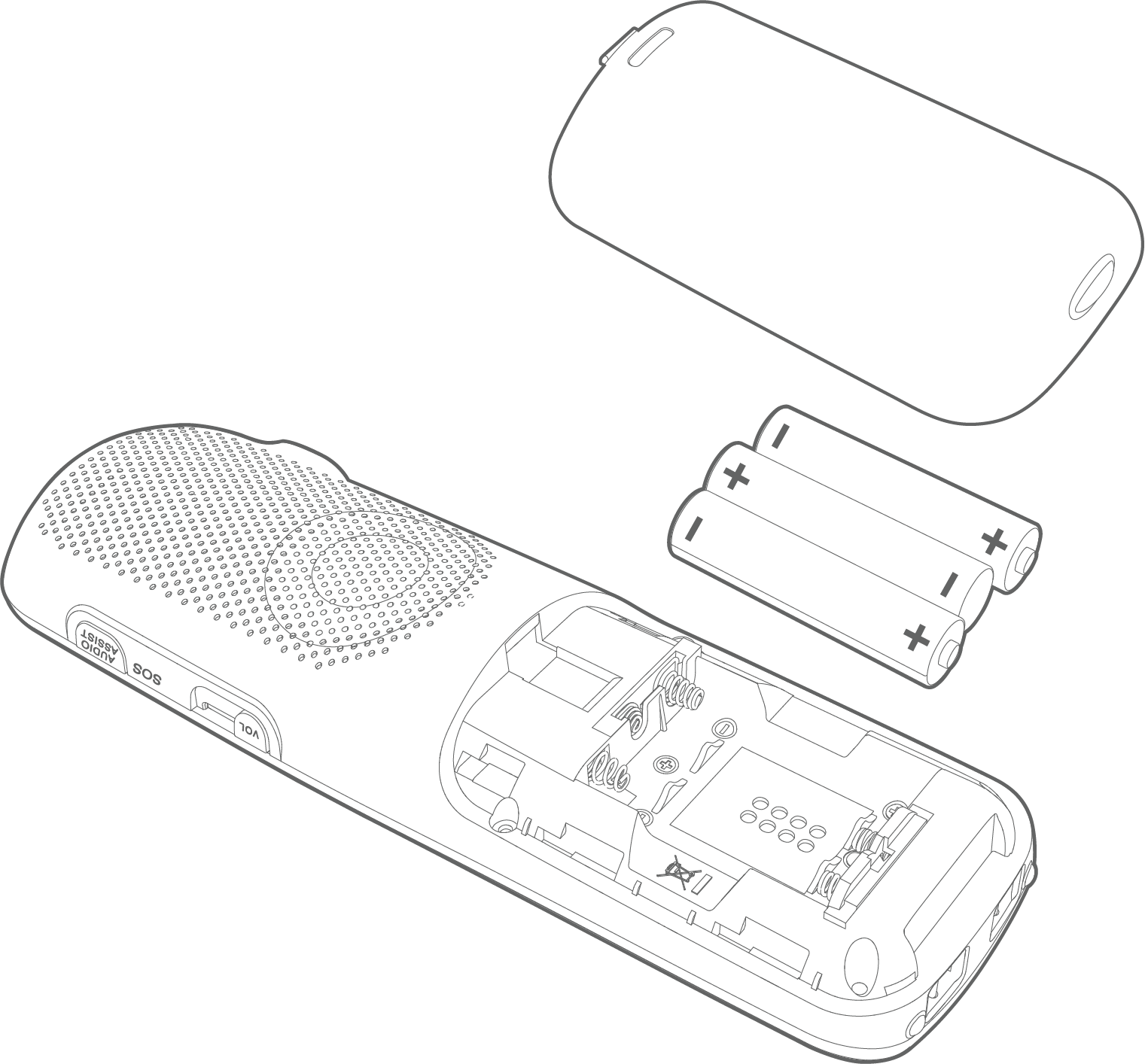

Install the battery as shown below.

CAUTION

  • Use only the rechargeable batteries provided or replacement batteries (model BT205662).

  • Do not use other alkaline, manganese or Ni-Cd batteries, nor other non-rechargeable batteries for operating the cordless handset. They may cause failure or malfunction of the handset or the telephone system.

NOTES

  • Charge the battery provided with this product only in accordance with the instructions and limitations specified in this manual.

  • If the handset will not be used for a long time, disconnect and remove the battery to prevent possible leakage.

  1. Insert the batteries into the handset battery compartment. Observe the correct polarity while inserting the batteries.

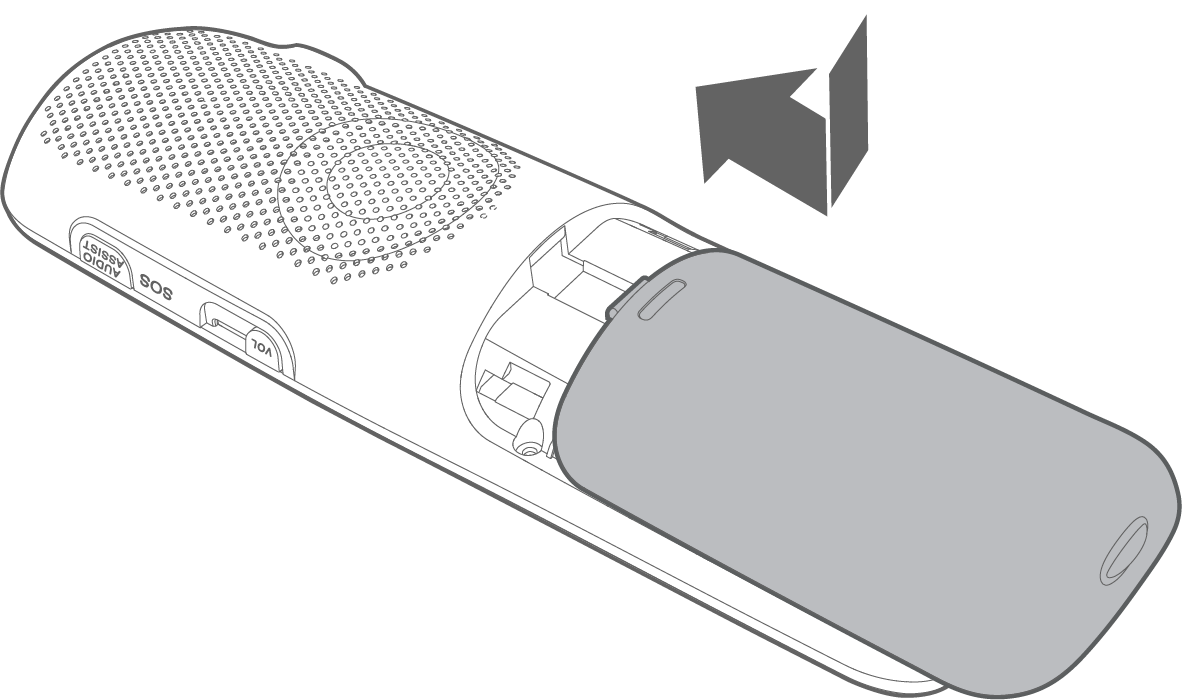

  2. Align the handset battery compartment cover with the handset and slide it upward to close it. Make sure the battery compartment cover is closed tightly.

Charge the battery

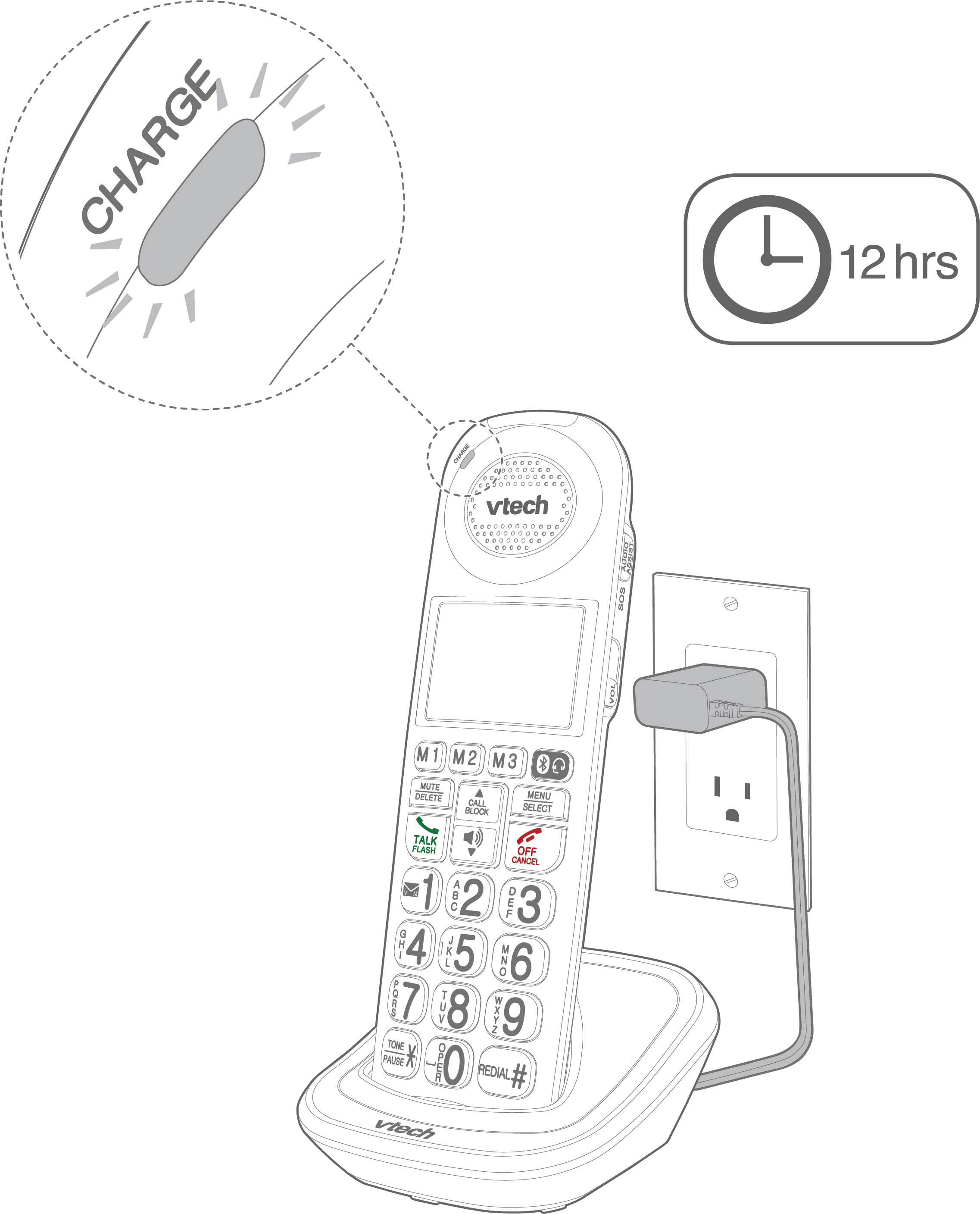

Place the handset in the charger to charge.

Once you have installed the battery, the handset LCD display indicates the battery status (see the following table).

NOTES

  • For best performance, keep the handset in the charger when not in use.

  • The battery is fully charged after 12 hours of continuous charging.

  • If you place the handset in the charger without plugging in the battery, the screen displays No battery.

Battery indicators Battery status Action

The screen is blank, or displays Place in charger and flashes.

The battery has no or very little charge. The handset cannot be used.

Charge without interruption (at least 30 minutes).

The screen displays Low battery and flashes.

The battery has enough charge to be used for a short time.

Charge without interruption (about 30 minutes).

The screen displays HANDSET.

The battery is charged.

To keep the battery charged, place it in the telephone base or charger when not in use.

When the battery is fully charged, you can expect the following performance:

Operation Operating time

While in use (talking*)

Seven hours

While not in use (standby**)

Five days

* Operating times vary depending on your actual use and the age of the battery.

** Handset is not charging nor in use.
