Connect

You can choose to connect the telephone base for desktop usage or wall mounting.

NOTES

Use only the adapters provided.
Make sure the electrical outlets are not controlled by wall switches.
The adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.

TIP

If you subscribe to digital subscriber line (DSL) high-speed Internet service through your telephone line, make sure you install a DSL filter (not included) between the telephone line cord and telephone wall jack. Contact your DSL service provider for more information.

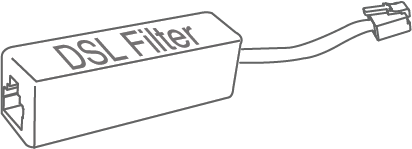

A DSL filter

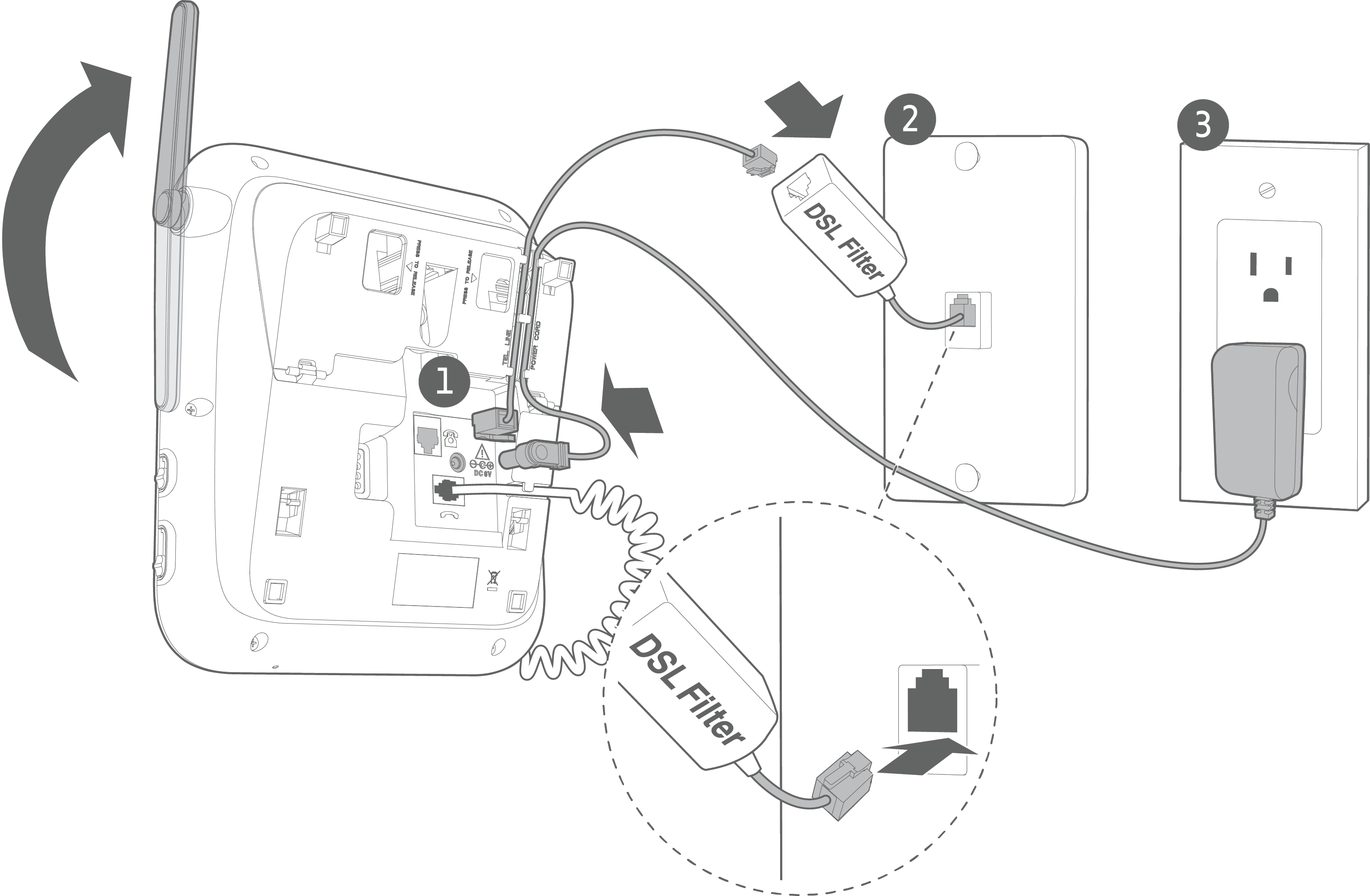

Connect the telephone base

Connect the coiled handset cord and the telephone line cord to the telephone jacks at the back of the telephone base, and connect the other end of the telephone line cord to the telephone wall jack. Then, connect the small end of the power adapter to the jack at the back of the telephone base and the large end to an electrical outlet.

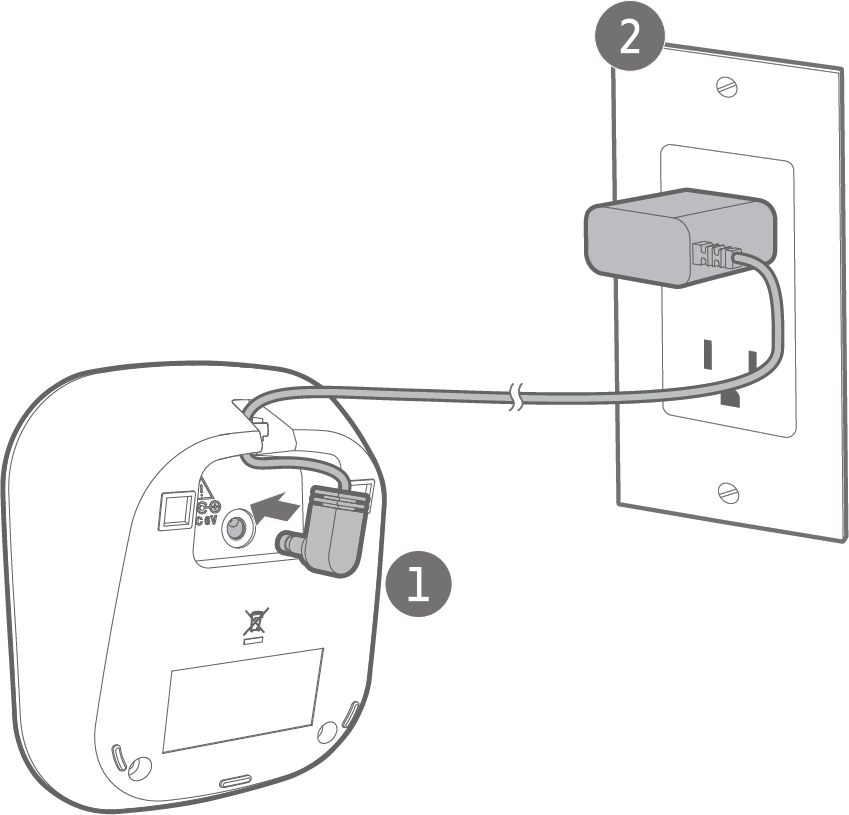

Connect the charger

Connect the small end of the power adapter to the jack at the back of the handset charger and the large end to an electrial outlet.
